Antriebstechnik Schmidt GmbH, represented by its Managing Director Horst
Schmidt, is a small workshop in Ottrau-Weißenborn, Hesse, Germany. We design, machine and sell drivetrain and
mechanical-engineering parts — with more than 25 years of experience in
gear cutting. In May 2021, after 25 years at the previous location, the
workshop moved to its current site with 800 m² of production and stock
space.
Many of our parts are distributed through specialist Porsche dealers and
parts suppliers; just as many go directly to motorsport customers racing
in a wide range of historic series. The standard is the same either way:
one-off production that satisfies the highest demands — measured,
documented, ready to install.
How we work
You are not talking to a sales department here — you are talking to the
man at the machine. Inquiry, advice, quote, machining and invoice come
from one person, from the first call to a detailed, transparent bill.
Whatever cannot be settled by phone or online is settled at the part:
visits are welcome any time by appointment, even if a production shop is
not a showroom.
Machinery
Manufacturing depth decides what a workshop can genuinely do itself. Our
key machines:

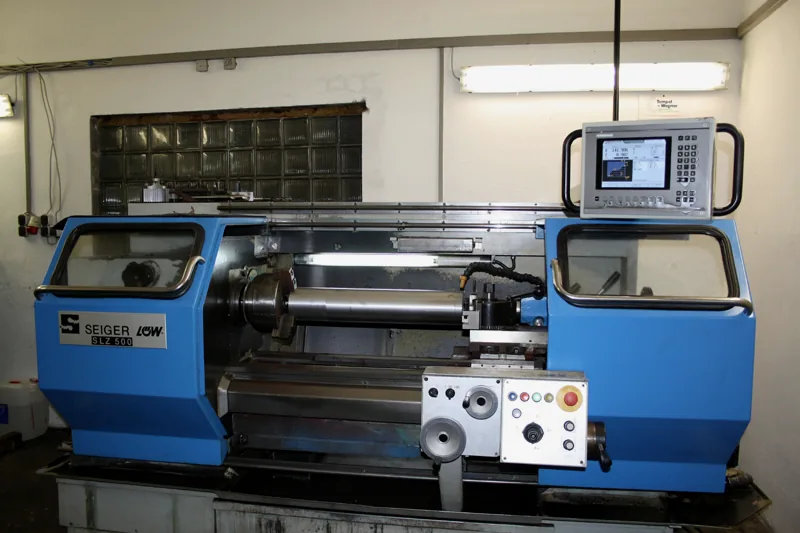

01 Seiler SLZ 570 CNC cycle-controlled lathe
Heidenhain control · turning diameter up to 500 mm over bed · turning length up to 1000 mm · workpiece weight up to 500 kg between centres
02 Lorenz SJ 7 gear shaper
internal/external gear cutting up to 500 mm diameter and module 8 · gear width up to 150 mm · sprockets up to 500 mm · workpiece weight up to 350 kg
03 Pfauter P160 gear hobbing machine
spur gears, straight/helical · shaft splines · for smaller diameters and modules
04 Pfauter P400 gear hobbing machine
spur gears, straight/helical, up to 500 mm diameter and 400 kg · shafts straight/helical up to 800 mm length
05 Hahndorf keyway slotting/broaching machine
keyway pulling, broaching and slotting of internal keyways up to 32 mm width and 200 mm length · blind keyways too
06 Forte automatic band saw, hydraulic
cutting capacity in round stock up to 300 mm diameter
07 Conventional milling machine
500 mm travel

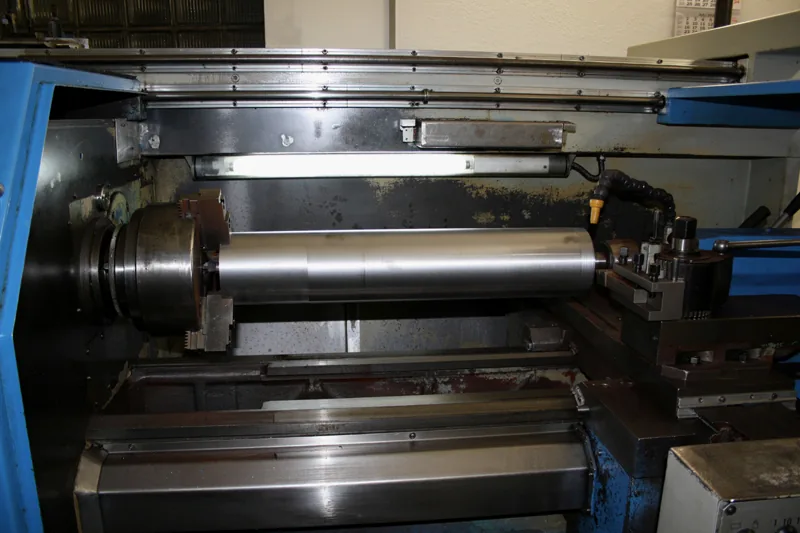

08 Pinacho lathe, conventional
turning diameter 600 mm over bed · turning length up to 1800 mm
09 Imatec engine lathe
turning diameter 200 mm · turning length up to 900 mm
10 Alzmetall pillar drill
drilling up to 50 mm diameter
Added to that: an extensive stock of standard and special tooling from
the automotive industry, TIG welding for steel, stainless and aluminium,
and a torsiometer with drag indicator for setting bearing friction
torque. A gearbox test bench signs off every rebuild.
